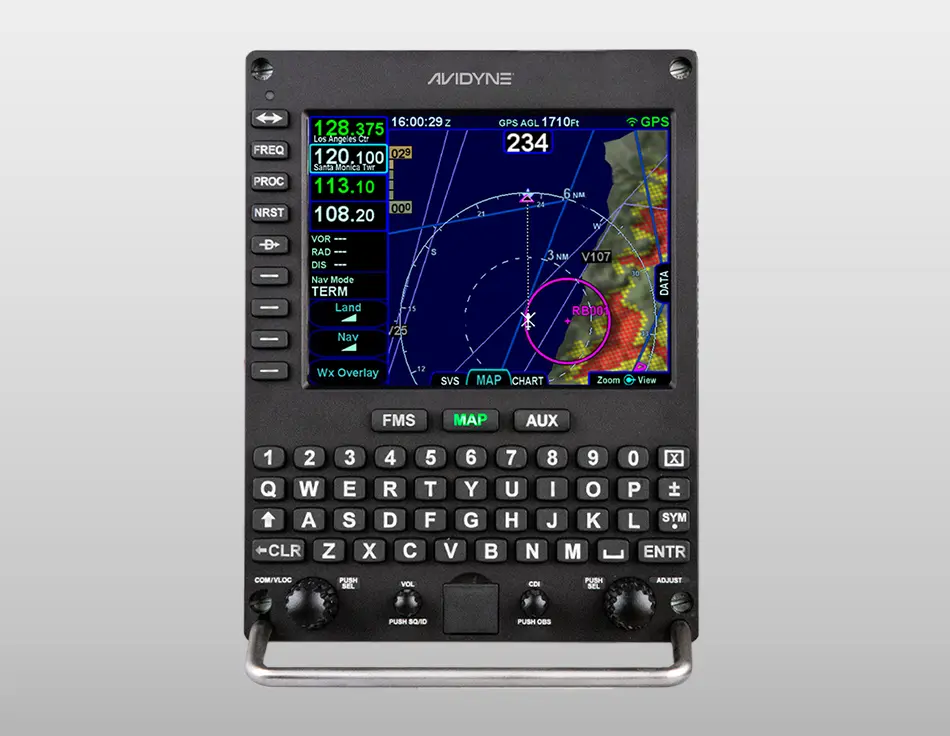

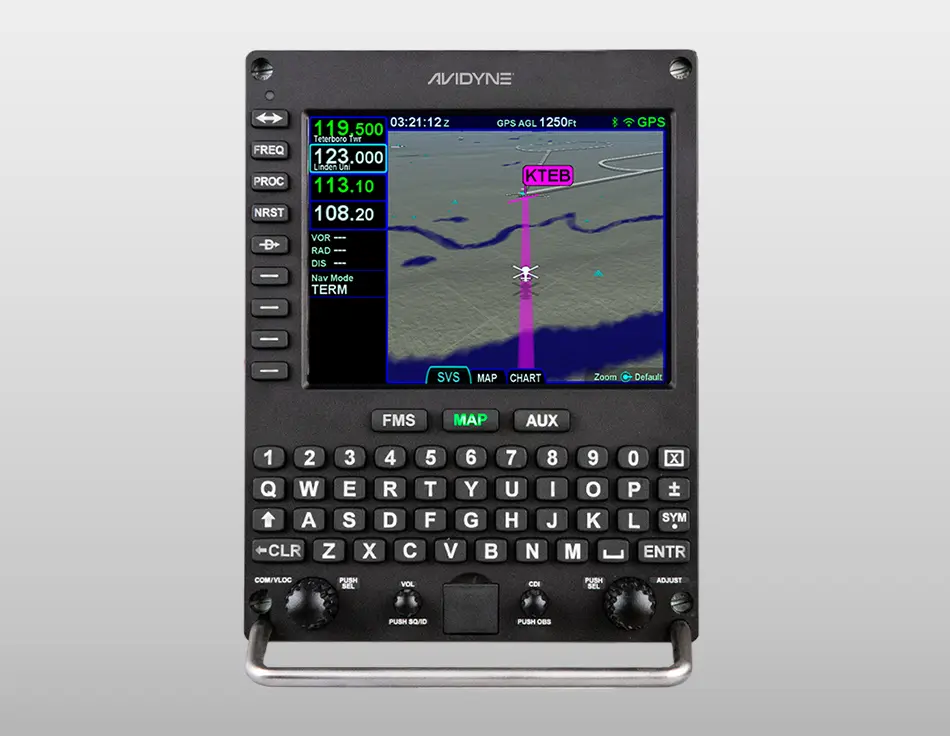

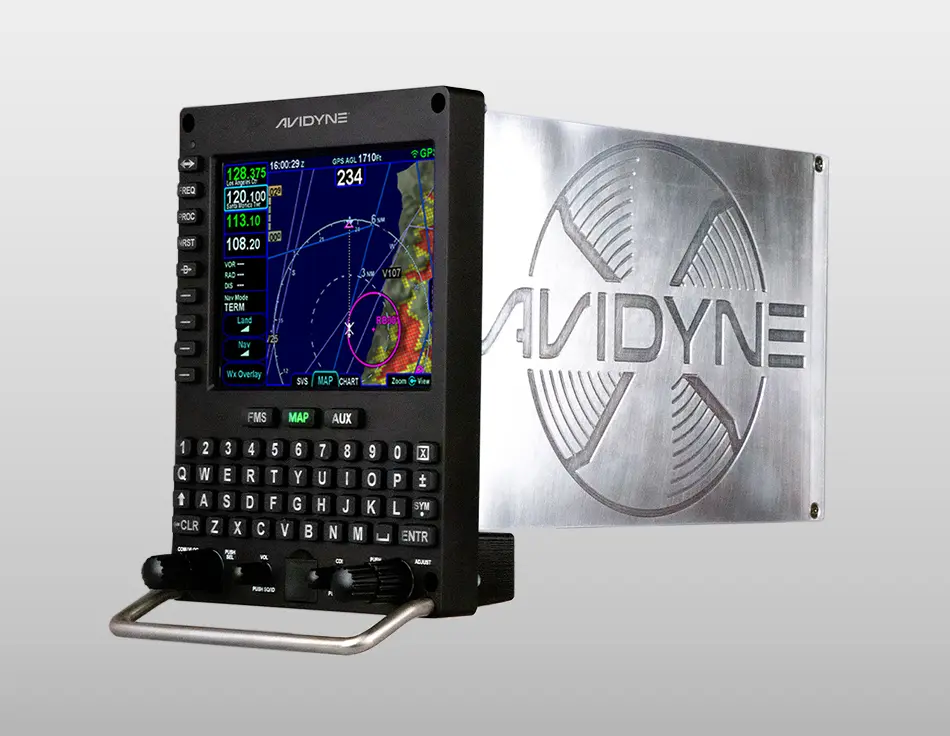

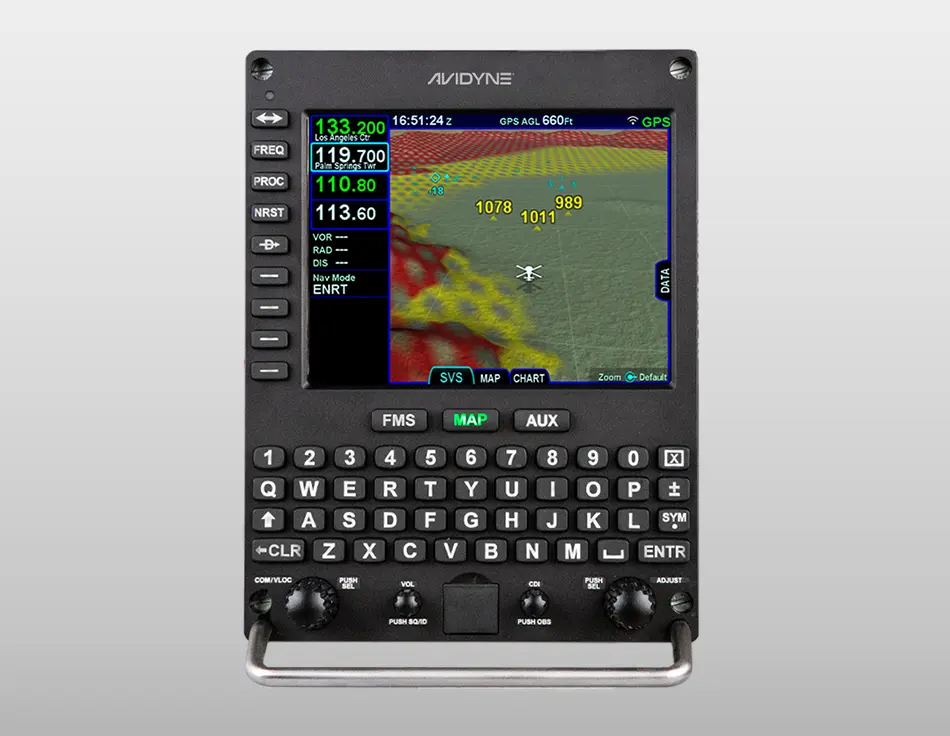

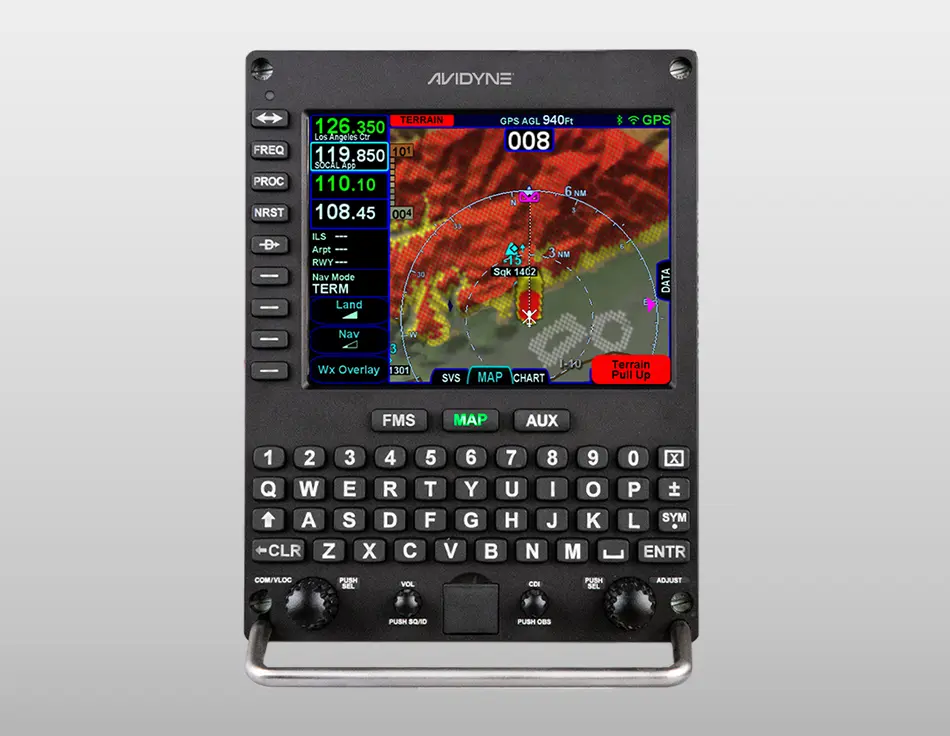

Avidyne Helios

Model #: 850-00195-020

Zoom

Up to 2-Year Limited Warranty

Multifunction SBAS Flight Management System for Helicopters

Helicopters require avionics specifically designed for the unique rigours of corporate, military and special mission rotary-wing flight which is why we created Avidyne Helios. Helios is a new multifunction Satellite-Based Augmentation System (SBAS) flight management system that provides full Required Navigation Performance (RNP) and Area Navigation (RNAV) capability, including Localizer Performance with Vertical (LPV), Lateral Navigation/Vertical Navigation (LNAV/VNAV), LNAV-Only, and Approach Procedures with Vertical (APV) approach modes in a dzus-mount.

But true capability required ease-of-use which is why we built-in features like easy flight planning, one-touch departure, airway, and arrival navigation, and included our patented GeoFill™ waypoint nomination. We even included a full keyboard and touch-screen input for easy map panning and flight plan editing.

Features

  • TSO-C146c for full SBAS/LPV approach guidance
  • Display of XM or ADS-B weather with full graphics overlay
  • Displays Jeppesen™ Electronic Approach Charts and Airport Diagrams including Heliports
  • QWERTY-style dedicated keyboard along with touch-screen hybrid touch user interface
  • Traffic display from TCAS, TAS, or ADS-B

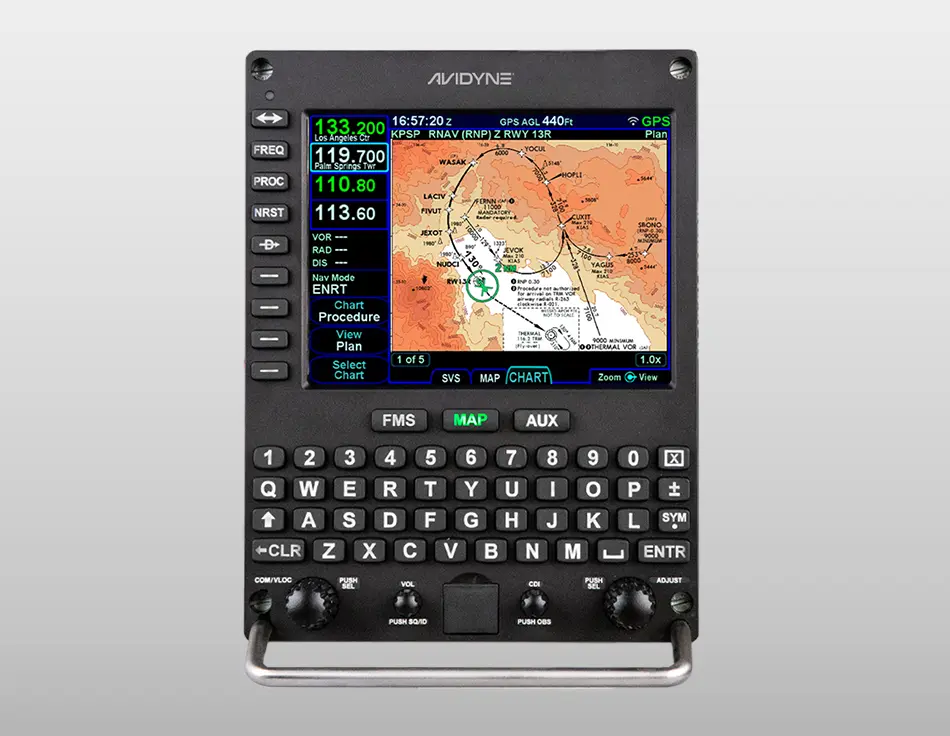

Electronic Approach Charts & Airport Diagrams

Electronic Approach Charts & Airport Diagrams

Integrated Jeppesen’s chart services display charts, airport diagrams and include a geo-referenced overlay of present position and current flight plan reducing pilot workload.

Integrated VHF Communication & Navigation

Integrated VHF Communication & Navigation

Helios provides an optional integrated VHF COM & NAV radio in the same small enclosure. The VHF NAV provides VOR navigation, as well as localizer and glideslope approach capability.

Hybrid Touch User Interface

Hybrid Touch User Interface

In smooth air, quickly and easily control Helios™ with touch screen. In turbulence, prevent jostling errors by switching to the dedicated QWERTY keyboard and buttons

Simple Flight Planning

Simple Flight Planning

Easy-to-use flight planning with airway navigation, full autopilot integration and clearance-language flight plan entry.

Wireless Connectivity

Wireless Connectivity

Helios includes integrated WiFi and Bluetooth® connectivity with numerous tablet application developers.

Avidyne’s GeoFill™ Technology

Avidyne’s GeoFill™ Technology

GeoFill™ intelligently predicts the next waypoint entry using proximity to your current location or the previous waypoint.

Display

  • 5.7” Diagonal w/Touch Screen
  • Full VGA - 640 x 480 pixels
  • 65,535 colors
  • Ultrabright sunlight readable w/LED Backlighting

Dimensions

  • Width: 5.750” (190.50mm)
  • Height: 7.500“ (146.05mm)
  • Depth: 11.900“(302.26) behind panel including connectors

Weight (including tray and connectors)

  • 8.50 lbs (3.855 kgs)

Power Requirements

  • 11 – 33VDC
  • 2.2A/4.0A XMIT @ 28vdc

VHF & VOR/LOC

  • 16-watt transmitter (Class 3, 5)
  • Simultaneous reception of two channels, voice or data
  • 8.33KHZ or 25KHZ operation (Class C, E)
  • VOR-RTCA DO-196
  • LOC-RTCA DO-1965
  • UHF GS-RTCA DO-192

GPS

  • 16-Channel GPS/SBAS Receivers
  • RTCA DO-178B and DO-254 Level B
  • RTCA DO-160E
  • Meets DO229D, Beta Class 3
  • Accuracy:
  • - Autonomous Position: 3 meters (CEP 50%), 5 meters (95%)
  • - SBAS Differential Position: 1 meter (CEP), 3 meters (95%)
  • - Velocity Sccuracy 0.1 knots (95%)
  • Dynamics:
  • - Acceleration: 10g max
  • - Speed: 1,000 knots
  • - Altitude: 50,000 ft

Environmental

  • DO 160E
  • To 50,000 Ft
  • -20C to +55C Operating
  • +70C Short Term

SkyTrax 200 Software Release 1.0.1

SKYTRAX200 TRAFFIC DEPICTION ANOMALY (2)

Helios Datasheet

Download PDF
File Size: 1.02 MB

Avidyne Full Line Brochure

Download PDF
Date: 03/22/2019
Part Number: AV848
File Size: 815.30 KB
File Revision: Rev. 01

SkyTrax ADS-B Receiver Pilot Guide

Download PDF
Date: 06/10/2021
Part Number: 600-00334-000
File Size: 2.46 MB
File Revision: Rev01

TAS600 Series Pilot’s Operating Handbook

Download PDF
Date: 03/22/2019
Part Number: 600-00145-000
File Size: 890.59 KB
File Revision: Rev. 09

Service Bulletin

Download PDF
Date: 09/28/2021
Part Number: 601-00190-002
File Size: 407.17 KB
File Revision: Rev 00

SERVICE LETTER

Download PDF
Date: 09/17/2021
Part Number: 606-00190-002
File Size: 131.82 KB
File Revision: REV00
