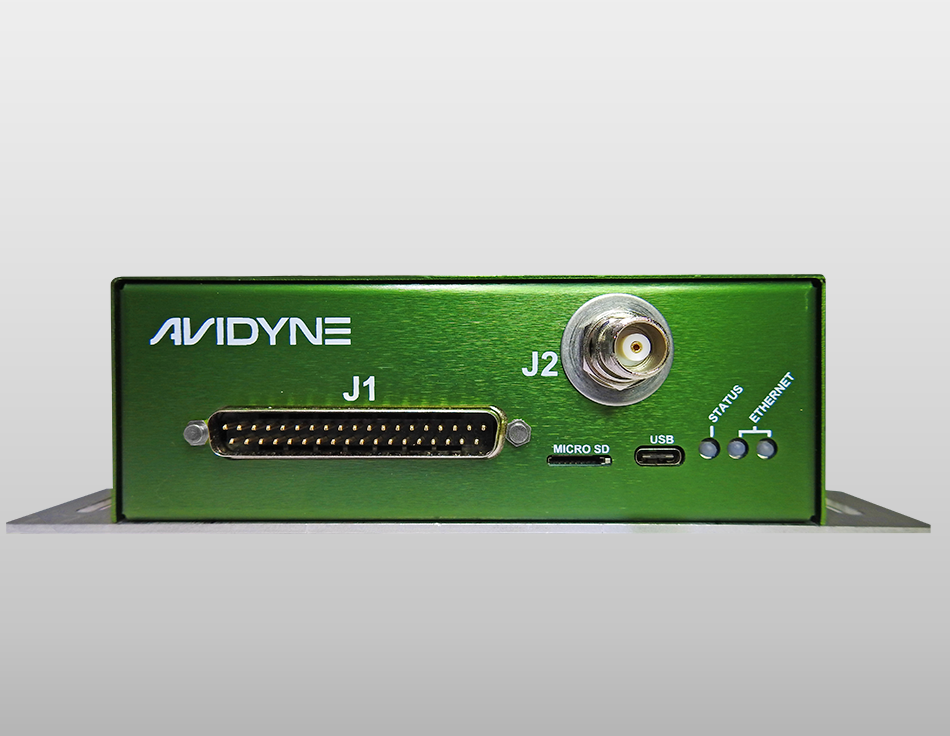

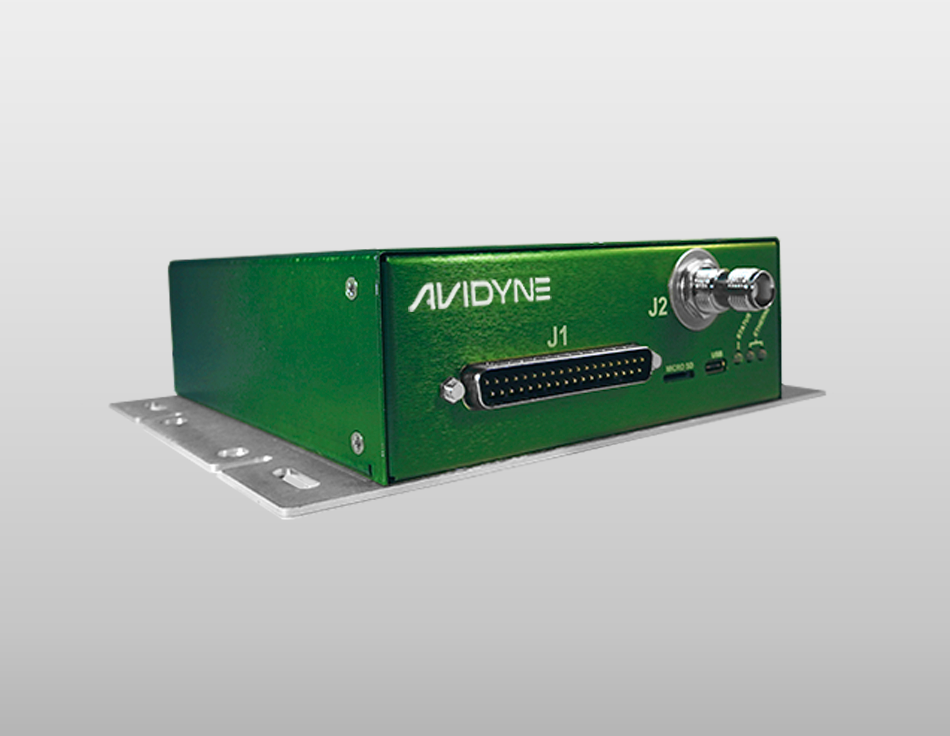

SkyTrax200 Dual Band ADS-B IN Receiver

Model #: 850-00228-100

Zoom

Fly Confidently Capturing Inbound Weather and Traffic Data

See direct line-of-sight ADS-B Traffic targets and receive Flight Information System Broadcast (FIS-B) weather* with the Avidyne SkyTrax200.

SkyTrax200 includes dual-band (1090MHz and 978 MHz) ADS-B and is also capable of receiving the traffic output from active traffic systems such as the Avidyne SkyTrax600, TAS600 series, Ryan 9900BX, or a legacy SkywatchTM system and combines it with other incoming data presenting you with an integrated view of dual-band ADS-B, TAS, and ATC radar traffic.

The Avidyne SkyTrax200’s weather and dual-band traffic can be displayed on Avidyne’s IFD-Series GPS/NAV/COMs, Multi-Function displays (MFD) or Entegra R9 integrated flight deck systems and supports standard Capstone and Arinc 429/735 interfaces.

* in US airspace where FIS-B is available

Up to 2-Year Limited Warranty

To download the Approved Model list (AML) click here.

For the latest Skytrax200 ADS-B Receiver Installation Manual click here.

Features

  • Dual-band ADS-B receivers provide direct line-of-sight reception of ADS-B Traffic targets.
  • Receiving Flight Information System Broadcast (FIS-B) weather via 978MHz in US airspace*.
  • Full ADS-B surveillance capability to meet the upcoming mandates for flight above and below FL180
  • Receives non-ADS-B (Transponder-equipped) traffic via TIS-B (U.S. Airspace)
Dual-band (1090MHz and 978 MHz) ADS-B Receivers

Dual-band (1090MHz and 978 MHz) ADS-B Receivers

Provide you with information on all direct line-of-sight ADS-B Traffic targets for use in airspace in the U.S. and around the globe.

Flight Information System Broadcast (FIS-B) weather

Flight Information System Broadcast (FIS-B) weather

SkyTrax200 is capable of receiving Flight Information System Broadcast (FIS-B) weather via 978MHz in US airspace where the FIS-B is available.

Receives Traffic Output From Other Traffic Systems

Receives Traffic Output From Other Traffic Systems

SkyTrax 200 combines other ADS-B traffic data and TIS-B traffic data received from ATC and presents an integrated view of ADS-B, TAS, and ATC radar traffic Alerter.

Works With A Wide Variety Of Displays

Works With A Wide Variety Of Displays

Works directly with Avidyne IFD, MFD, and Entegra R9 systems plus supports standard Capstone and Arinc 429/735 interfaces.

Direct Reception of 1090MHz Targets

Direct Reception of 1090MHz Targets

Improved performance in US airspace compared with single-band systems relying on ADS-R.

Free Upgrade

Free Upgrade

Avidyne customers with the single-band SkyTrax100B receiver can have their units software upgraded to SkyTrax200 dual-band capability.

SkyTrax200 Dual-Band ADS-B IN FIS-B Wx & Traffic

  • Receive only
  • For IFD540/440 customers with AXP340 Mode S Transponder (1090MHz ADS-B Out) > 18,000ft

Dimensions

  • Width: 7.28” (185mm) - Including mounting bracket
  • Height: 2.04” (52mm)
  • Depth: 6.20” (158mm

Weight

  • 1.40 lbs (0.64 kg) - excluding cables

Type

  • 978MHz TSO Rule Compliant ADS-B IN

Certification

  • TSO-C154c, RTCA/DO-282B

Power

  • Voltage: 9-33VDC
  • Input Current (8W nominal): 0.6A @ 14VDC, 0.41A @ 28VDC

Environmental

  • -20 to +55 C

SkyTrax 200 Software Release 1.0.1

SKYTRAX200 TRAFFIC DEPICTION ANOMALY (2)

Avidyne Full Line Brochure

Download PDF
Date: 03/22/2019
Part Number: AV848
File Size: 815.30 KB
File Revision: Rev. 01

SkyTrax ADS-B Receiver Pilot Guide

Download PDF
Part Number: 600-00334-000
File Size: 1.6 MB
File Revision: Rev02

TAS600 Series Pilot’s Operating Handbook

Download PDF
Date: 03/22/2019
Part Number: 600-00145-000
File Size: 890.59 KB
File Revision: Rev. 09

Service Bulletin

Download PDF
Date: 09/28/2021
Part Number: 601-00190-002
File Size: 407.17 KB
File Revision: Rev 00

SERVICE LETTER

Download PDF
Date: 09/17/2021
Part Number: 606-00190-002
File Size: 131.82 KB
File Revision: REV00

SkyTrax200 Datasheet

Download PDF
File Size: 352.28 KB
