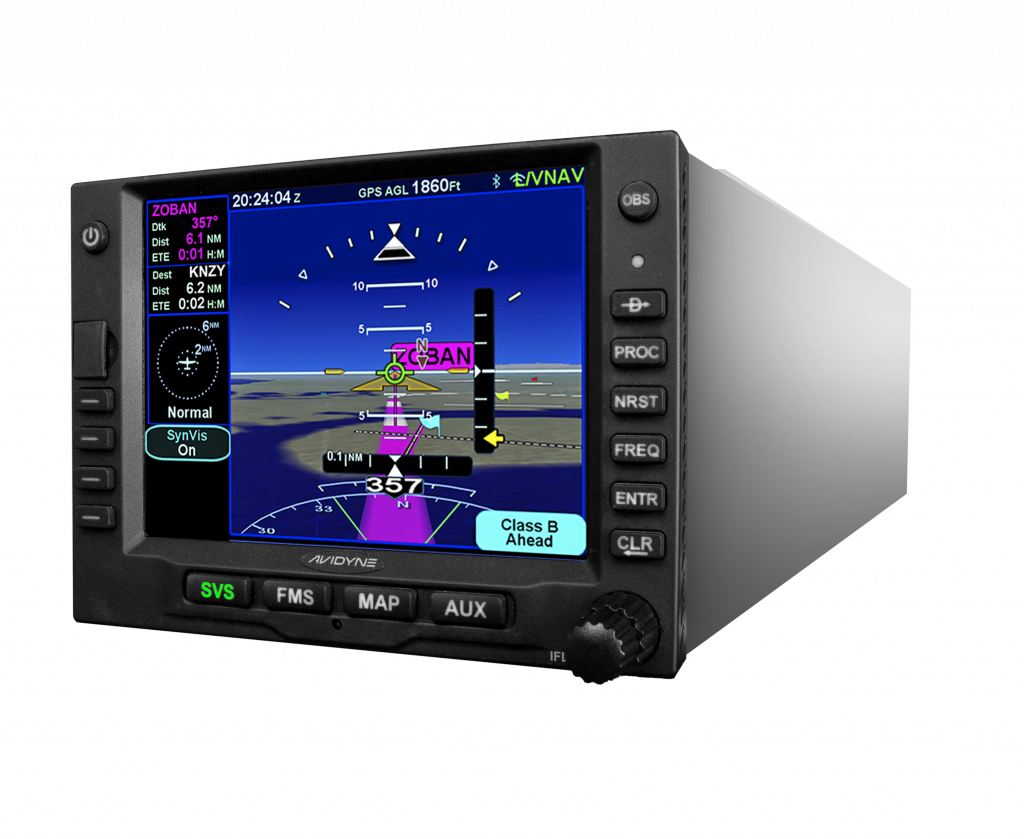

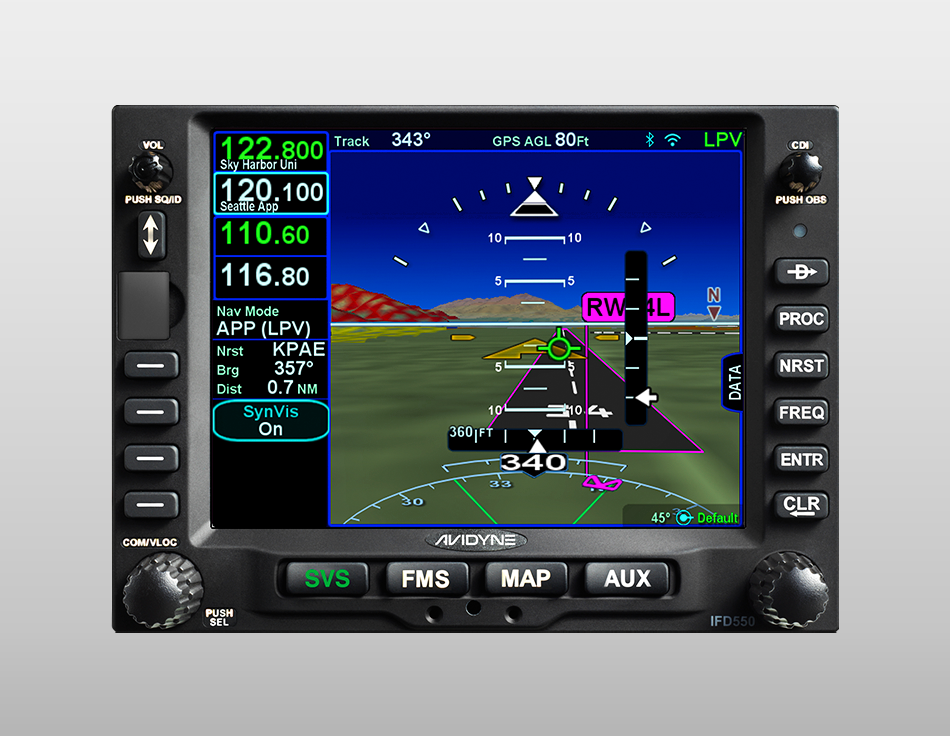

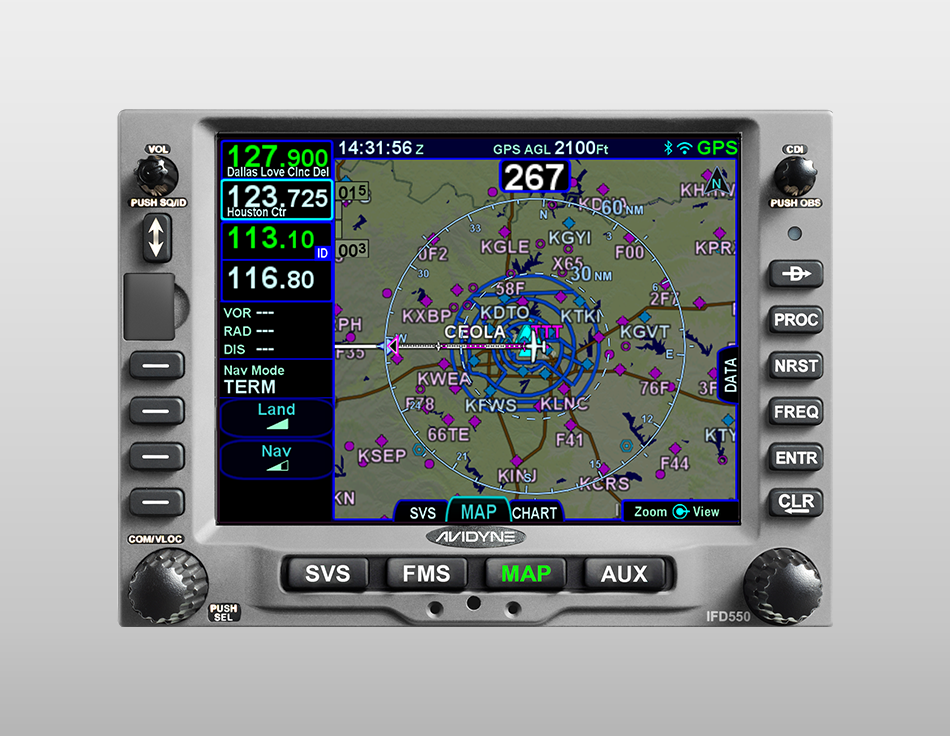

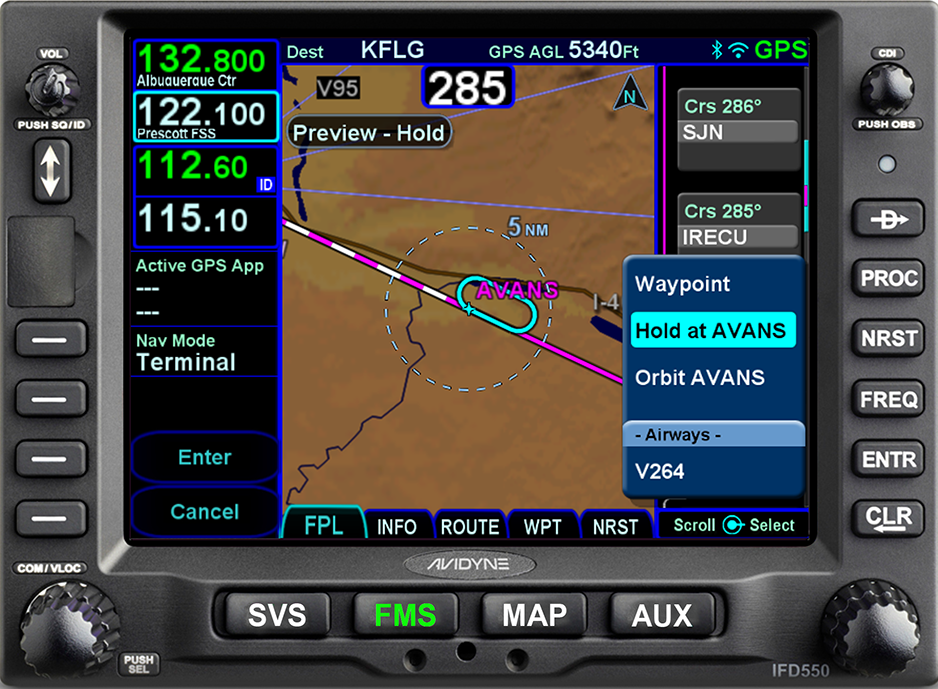

IFD550 GNS530 Slide in Replacement

Display (IFD550/540/545/510)

• 5.7” Diagonal w/Touch Screen
• Full VGA - 640 x 480 pixels
• 65,535 colors
• Ultrabright sunlight readable w/LED Backlighting

Dimensions (IFD550/540/545/510)

• Width: 6.30” (16.0cm)
• Height: 4.60“ (11.7cm)
• Depth: 11.00“(27.5cm) behind panel including connector

Weight (including tray and connectors)

• IFD440 - 6.88 lb (2.34 kg)
• IFD410 - 5.16 lb (3.99 kg)
• IFD550 - 9.19 lb (4.17 kg)
• IFD540 - 8.79 lb (3.99 kg)
• IFD545 - 7.48 lb (3.39 kg)
• IFD510 - 7.13 lb (3.23 kg)

Power Requirements

• 11 – 33VDC
• 4.4A/6.5A Xmit @ 14vdc
• 2.2A/4.0A Xmit @ 28vdc

VHF COM Power Output

• 10 Watts nominal
• Optional 16Watt (for 28vdc installations only)

Environmental

• DO 160E
• To 50,000 Ft
• -20C to +55C Operating
• +70C Short Term

Applicable TSOs

• TSO-C34e - ILS Glide Slope Receiving Equipment Operating within the Radio Frequency Range of 328.6-335.4 Megahertz (MHz)
• TSO-C36e - Airborne ILS Localizer Receiving Equipment Operating within the Radio Frequency Range of 108-112 Megahertz (MHz)
• TSO-C40c - VOR Receiving Equipment Operating within the Radio Frequency Range of 108-117.95 Megahertz (MHz)
• TSO-C44c - Fuel Flowmeters
• TSO-C110a - Airborne Passive Thunderstorm Detection Equipment
• TSO-C112e - Air Traffic Control Radar Beacon System/Mode Select (ATCRBS/Mode S) Airborne Equipment
• TSO-C113a - Airborne Multipurpose Electronic Display
• TSO-C118 - Traffic Alert and Collision Avoidance System (TCAS) Airborne Equipment, TCAS I
• TSO-C128a - Devices that Prevent Blocked Channels Used in Two-Way Radio Communications Due to Unintentional Transmissions
• TSO-C146d - Stand-Alone Airborne Navigation Equipment Using the Global Positioning System (GPS) Augmented by the Wide Area Augmentation System (WAAS).Airborne Supplemental Navigation Equipment Using the Global Positioning System (GPS) - Gamma 3
• TSO-C147 - Traffic Advisory System (TAS) Airborne Equipment - Class A (Display Functions Only)
• TSO-C157a - Aircraft Flight Information Services – Broadcast (FIS-B) Datalink Systems and Equipment
• TSO-C165 - Electronic Map Display Equipment for Graphical Depiction of Aircraft Position
• TSO-C169a - VHF Radio Communications Transceiver Equipment Operating Within The Radio Frequency Range 117.975 To 137.000 Megahertz - Class C, E, 3 and 5
• TSO-C194 - Helicopter Terrain Awareness and Warning System (HTAWS)
• TSO-C195b - Avionics Supporting Automatic Dependent Surveillance - Broadcast ADS-B Aircraft Surveillance Applications
• TSO-C201 - Attitude and Heading Reference Systems AHRS (A4HXT7) (IFD550/IFD545)

This list is not exhaustive - click here for a full list of compatible equipment.

Satellite Datalink Weather Interface

• Avidyne MLB700/WSI AV-300 Broadcast Datalink Receiver
• GDL69/A XM Broadcast Datalink using Baron Wx Services and XM® Satellite Receiver

Electronic Approach Charts & Airport Diagrams (IFD 5-Series Only)

• CMax™ – Jeppesen Electronic Airway Manual Charts
• European VFR (Bottlang) Charts - optional

Lightning Interface

• Avidyne TWX670 Tactical Lightning Detection
• L3 WX-500 Stormscope® Weather Mapping Sensor

Wx Radar Systems

• Bendix/King RDR2000

Traffic Interface

• Avidyne SkyTrax600/605/610/615/620/A TAS/AXP322 TIS
• Ryan 9900B/BX TAS
• Honeywell KTA870/KMH880 TAS/IHAS/CAS66A TCAS I
• L3 Skywatch 497 / HP TAS/ 791 TCAS I
• Garmin GTS800/820 TAS/GTS850 TCAS I/ GTX330 TIS

ADS-B Interface

• Avidyne SkyTrax605A/SkyTrax615A/ SkyTrax620A (Traffic)
• Avidyne SkyTrax100B
• Avidyne AXP340, AXP322
• L3 NGT-9000
• Freeflight RANGR
• Garmin GTX330ES, GTX335, GTX345

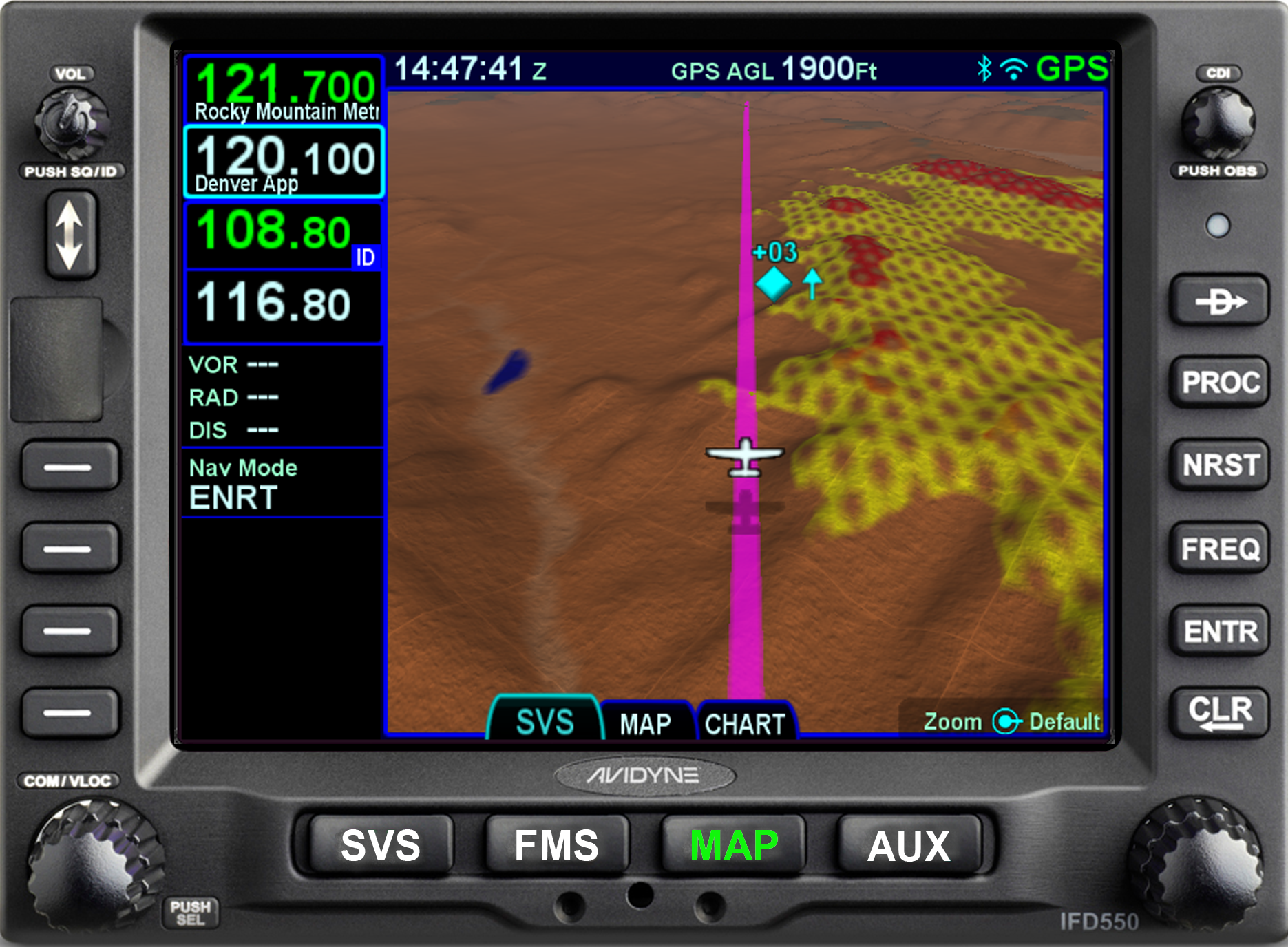

Terrain Awareness

• Color-Contoured Terrain Base Map Built in
• Americas Terrain & US Obstacle Data
• International Terrain Data (optional)

Video Interface

• RS170 (optional)

406 ELT Interface

• Aviation RS-232
• NMEA 0183

Applicable TSOs

• TSO-C34e, TSO-C36e, TSO-C40c, TSO-C44c, TSO-C110a, TSO-C112e, TSO-C113a, TSO-C118, TSO-C128a, TSO-C146d, TSO-C147, TSO-C157a, TSO-C165, TSO-C169a

Air Data

• B&D 2600, 2601, 2800, 900004-03 ADC
• Bendix King KAD 280/480 ADC, KDC 281/481
• Shadin (ADC 2000, 200, 200+), (8800T, 9000T, 9200T Alt Computer), 9628XX-X Fuel/Air Computer
• Insight TAS 1000 ADC
• Icarus Instrument 3000
• Sandia SAC7-35
• Garmin GDC74A

Encoding Altimeter or Blind Encoders

• Bendix King KEA-130A, KEA-346
• Terra AT-3000
• Sandia SAE5-35
• Trans-Cal Industries IA-RS232-X, SSD120
• ACK Technologies A-30

EFIS

• Avidyne EXP5000
• Bendix King EFS 40/50
• Collins Proline 21 EFIS, EFIS 84(non-WAAS only)
• Honeywell Primus 1000
• Sextant SMD 45
• Aspen EFD1000 Pilot PFD
• Garmin G5
• Garmin GI-275

Displays

• Garmin GDU 620, MX20, MX200, GPSMAP 195/295, GPSIII Pilot, GPSMAP196/296/396/496/695/696, Aera 796/795
• Argus 3000, 5000, 7000
• Horizon DDMP
• Avidyne EX500, EX600, EX5000, FlightMax Series
• BFG Stormscope Series II

Heading

• Bendix King KAH 460 Inertial System (KUA 461 also)
• Collins AHC 85 Inertial Systems Laserref
• Honeywell HG 1075AB, HG 1095AG Inertial Systems
• Litef LTR 81 Inertial System
• Litton LTN 90-100, LTN 91, LTN 92 Inertial System

EHSI

• Sandel SN3308, SN3500

Fuel

• Shadin 91053XP, 91053XT-D Digital Fuel Mgmt System “Digiflo-L”, 91204XT (38) D, 91204XT-D Digital Fuel Mgmt System “Miniflo-L”, 91802-() “Digi Data”
• JPI EDM-700/760 Engine Monitor, FS-450
• ARNAV FC-10, FT-10
• EI FP-5l
• Insight GEM 3

Traffic

• L3 SKY497 SkyWatch, Sky899 SkyWatch HP
• Bendix King KTA-870/970, KMH980/880
• Garmin GTS 800/820/850
• Ryan TCAD 9900B/9900BX
• Avidyne SkyTrax 600/605/610/615/620

Transponder

• Garmin GTX 330/330 ES/330D ES/327
• Avidyne AXP340
• Trig TT31

Lightning

• L3 WX500
• Avidyne TWX670 “Native” Format

Datalink

• Garmin GDL-69/69A
• Avidyne MLB700
• WSI AV-300/350

Autopilot

• Avidyne DFC90
• Bendix King KFC400/325/320/300/275/250/225/200/150, KAP150/140/100
• Century I/II/III/IV, 21, 31/41, 2000, Triden, AK 1081 GPSS Converter
• Collins APC-65 Series, FGC-65, FYD-65
• STec 20/30/40/50/55, 55x, 60 PSS, 60-1, 60-2, 65, ST901 GPSS Converter

Misc

• Garmin GAD42 Interface Adapter

EGPWS

• Bendix King KGP560

DME

• Bendix King KN 62/62A, KN 64, KDI 572/574
• Collins DME 40/42, TCR 451
• Narco DME 890, IDME 891
• ARC (Cessna) RTA-476A
• Bendix King KN61/63/65, KDM 706

Nav Indicator

• Garmin GI 102/A, GI 106/A, KI 202/203/204/206/208/208A/209/209A/525A, 552/B, 553/A/B
• Mid-Continent MD 222-402/406, 200-20X, 200-30X
• Century NSD 360A/1000
• Collins 331A-6P, 331A-9G, PN-101
• STec ST180
• Sperry RD 444/550A/650

RMI

• Bendix King KI 229/582/692

External GPS Annunciator

• Mid Continent MD41-14XX
• Staco Switch 992561
• Vivisun 95-40-…, 95-45-11-B6-AW724

Remote TAWS Annunciator

• Garmin 013-0079-XX
• Mid Continent MD41-10XX

Audio Panel

• Avidyne AMX240
• Apollo (Garmin) SL10/15
• Garmin GMA 340/347
• PS Engineering 6000, 7000, 8000, 8000BT
• Bendix King KMA 24/26/28/24H

406 ELT

• Artex ME406
• Ameri-King AK 451-(*)
• ACK E-04
• Nacro
• Pointer 3000
• Kannad
