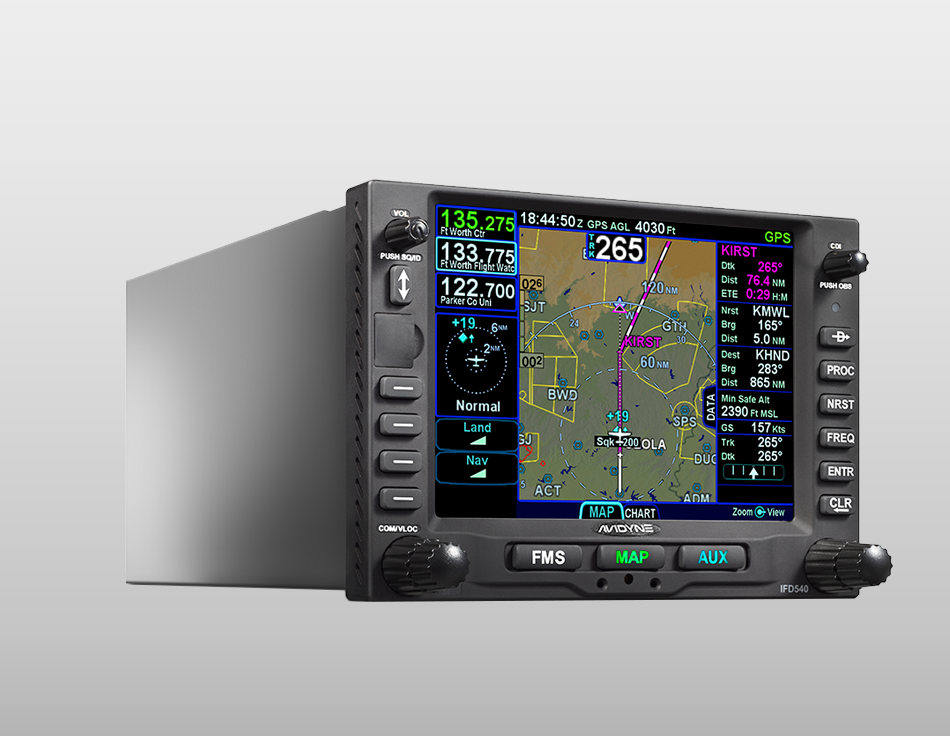

Garmin GNS530 Slide in Replacement: Avidyne IFD540

Model #: ABC123

Zoom

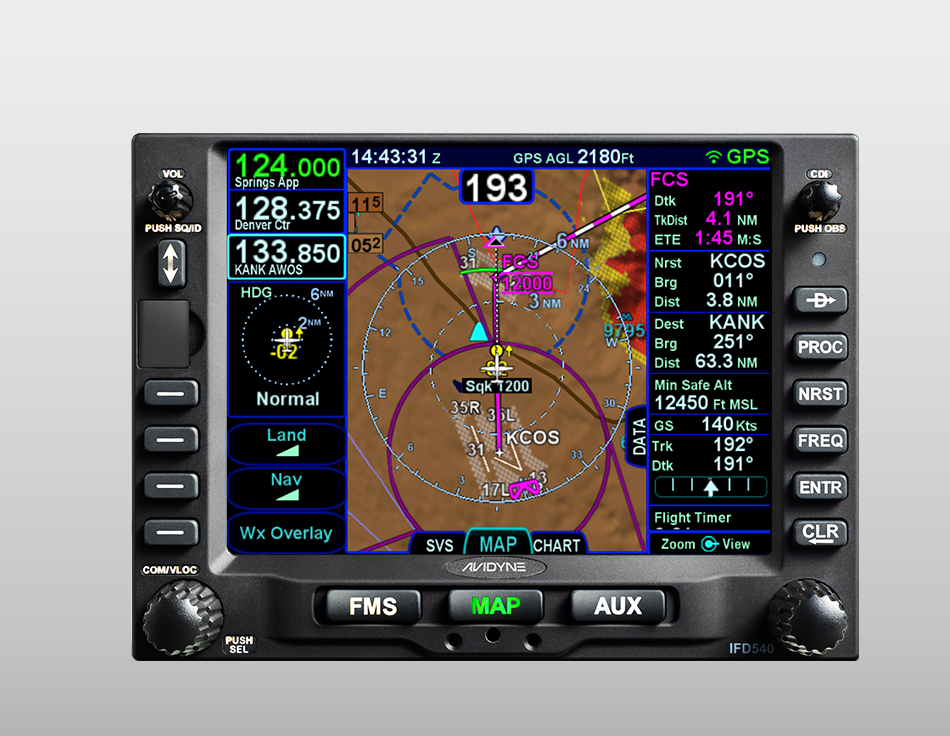

Garmin GNS 530 replacement
Garmin GNS 530 replacement

Up to 2-Year Limited Warranty

So Intuitive And Powerful You’ll Wonder Why You Didn’t Upgrade Sooner. The perfect Garmin GNS530 slide in replacement.

We gave the IFD540 everything a pilot could want in an FMS|GPS|NAV|COM. The FMS Preview™ lets you easily create, upload and review your flight plans visually with changes shown on the screen before selection plus in-flight changes are a snap because GeoFill™ predicts your next entry based on your location, not the sequence in the database. The IFD540 even amps up your safety and situational awareness – Synthetic Vision provides you with an enhanced “VFR-Like” view of what’s in front of the aircraft displaying 3D terrain with hazard alerting, obstacles, and traffic. Everything you need to see on a bright, easy-to-view 5.7” touchscreen. And it is a Garmin GNS530 slide in replacement.

Features

  • Full FMS/GPS/NAV/COM Capabilities
  • 3D Synthetic Vision
  • Hybrid touch user interface

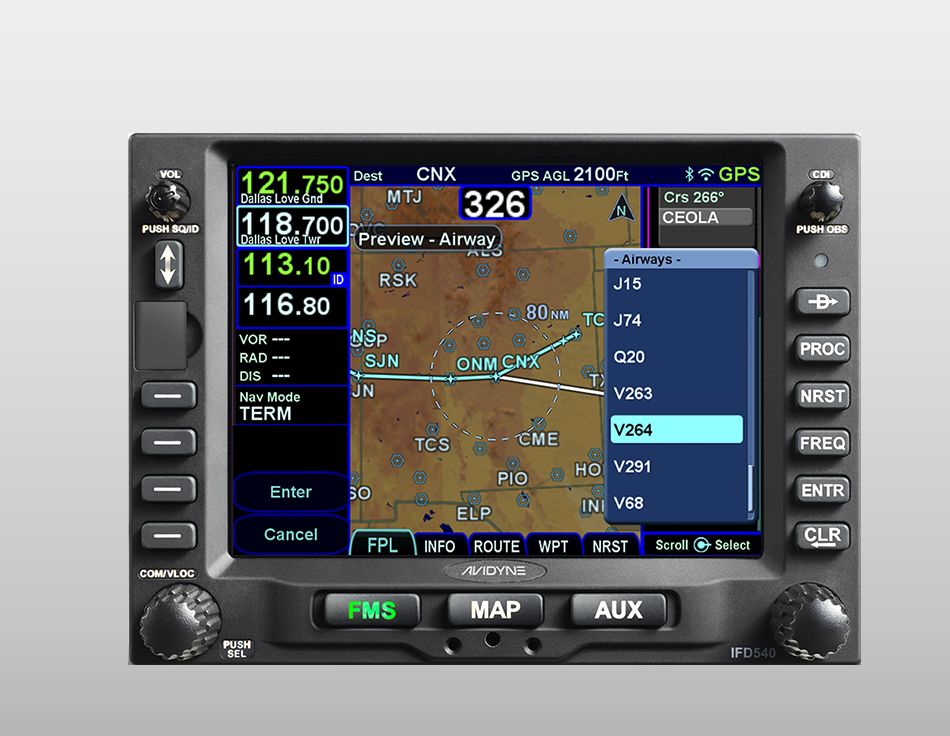

  • FMS Preview™ flight plan loading with real-time graphical depictions
  • Seamless integration to Avidyne’s IFD 100 iPad app
  • Slide-in Replacement for Garmin GNS530.
Electronic Approach Charts

Electronic Approach Charts

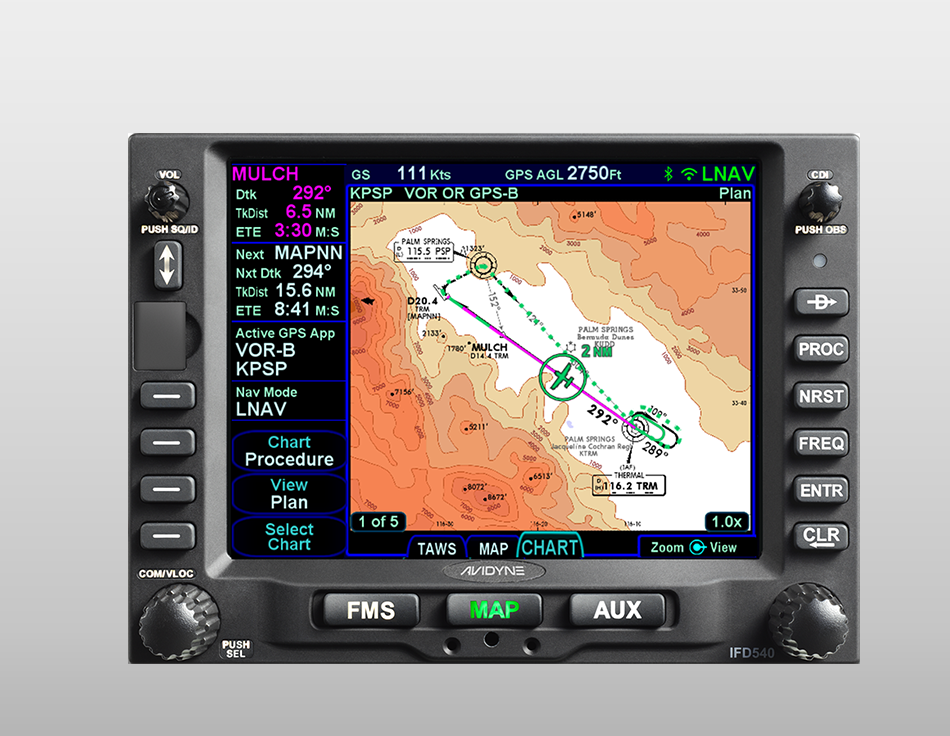

Easy access to the Jeppesen electronic chart library—including approach charts and geo-referenced airport diagrams of over 6,000 locations– for complete situational awareness, even at unfamiliar airports.

3D Synthetic Vision

3D Synthetic Vision

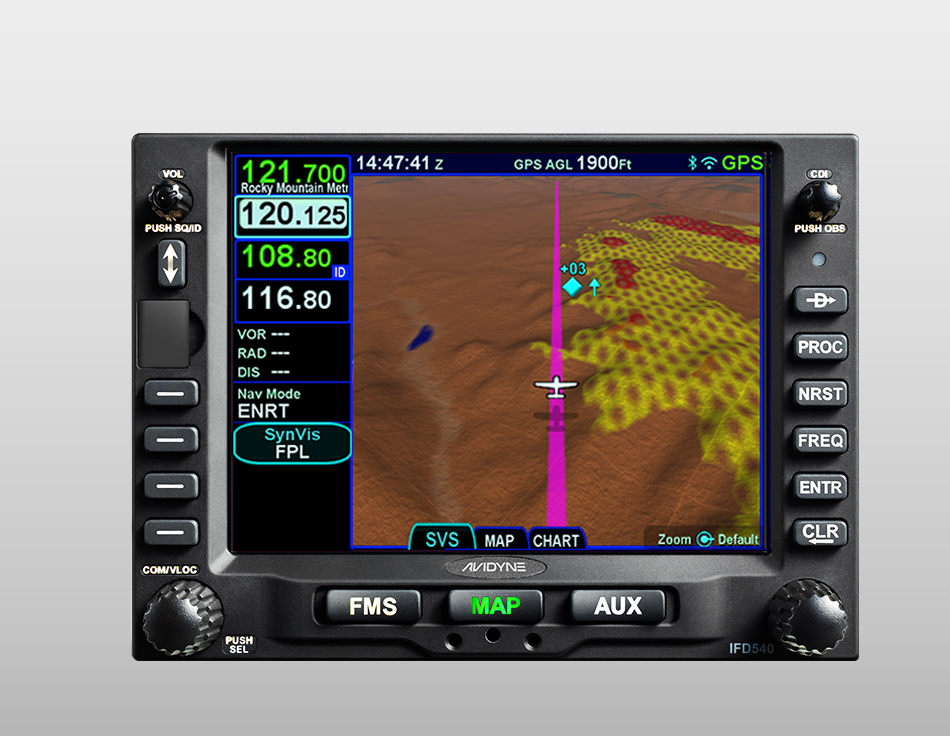

Exceptional situational awareness thans to the crystal-clear, VFR view of your surroundings including nearby terrain, traffic, obstacles, airports, and flight plan overlay

Hybrid Touch User Interface

Hybrid Touch User Interface

In smooth air, quickly and easily control IFD540 with touch screen. In turbulence, prevent jostling errors by switching to the dedicated knobs and buttons

Simple Flight Planning with FMS Preview™

Simple Flight Planning with FMS Preview™

Easy data entry and automatically created user-defined waypoints with a real-time graphical depiction of each proposed modification.

IFD 100 iPad Integration

IFD 100 iPad Integration

Create flight plans in the comfort of your home or office then wirelessly upload them to your IFD540.

Avidyne’s GeoFill™ Technology

Avidyne’s GeoFill™ Technology

GeoFill™ intelligently predicts the next waypoint entry using proximity to your current location or the previous waypoint.

Display (IFD550/540/545/510)

  • 5.7” Diagonal w/Touch Screen
  • Full VGA - 640 x 480 pixels
  • 65,535 colors
  • Ultrabright sunlight readable w/LED Backlighting

Dimensions (IFD550/540/545/510)

  • Width: 6.30” (16.0cm)
  • Height: 4.60“ (11.7cm)
  • Depth: 11.00“(27.5cm) behind panel including connector

Weight (including tray and connectors)

  • IFD440 - 6.88 lb (2.34 kg)
  • IFD410 - 5.16 lb (3.99 kg)
  • IFD550 - 9.19 lb (4.17 kg)
  • IFD540 - 8.79 lb (3.99 kg)
  • IFD545 - 7.48 lb (3.39 kg)
  • IFD510 - 7.13 lb (3.23 kg)

Power Requirements

  • 11 – 33VDC
  • 4.4A/6.5A Xmit @ 14vdc
  • 2.2A/4.0A Xmit @ 28vdc

VHF COM Power Output

  • 10 Watts nominal
  • Optional 16Watt (for 28vdc installations only)

Environmental

  • DO 160E
  • To 50,000 Ft
  • -20C to +55C Operating
  • +70C Short Term

Applicable TSOs

  • TSO-C34e - ILS Glide Slope Receiving Equipment Operating within the Radio Frequency Range of 328.6-335.4 Megahertz (MHz)
  • TSO-C36e - Airborne ILS Localizer Receiving Equipment Operating within the Radio Frequency Range of 108-112 Megahertz (MHz)
  • TSO-C40c - VOR Receiving Equipment Operating within the Radio Frequency Range of 108-117.95 Megahertz (MHz)
  • TSO-C44c - Fuel Flowmeters
  • TSO-C110a - Airborne Passive Thunderstorm Detection Equipment
  • TSO-C112e - Air Traffic Control Radar Beacon System/Mode Select (ATCRBS/Mode S) Airborne Equipment
  • TSO-C113a - Airborne Multipurpose Electronic Display
  • TSO-C118 - Traffic Alert and Collision Avoidance System (TCAS) Airborne Equipment, TCAS I
  • TSO-C128a - Devices that Prevent Blocked Channels Used in Two-Way Radio Communications Due to Unintentional Transmissions
  • TSO-C146d - Stand-Alone Airborne Navigation Equipment Using the Global Positioning System (GPS) Augmented by the Wide Area Augmentation System (WAAS).Airborne Supplemental Navigation Equipment Using the Global Positioning System (GPS) - Gamma 3
  • TSO-C147 - Traffic Advisory System (TAS) Airborne Equipment - Class A (Display Functions Only)
  • TSO-C157a - Aircraft Flight Information Services – Broadcast (FIS-B) Datalink Systems and Equipment
  • TSO-C165 - Electronic Map Display Equipment for Graphical Depiction of Aircraft Position
  • TSO-C169a - VHF Radio Communications Transceiver Equipment Operating Within The Radio Frequency Range 117.975 To 137.000 Megahertz - Class C, E, 3 and 5

UNCOMMANDED RESTART IFD4XX IFD5XX

INCORRECT SQUAWK CODE WHEN IFD4XX/5XX IS THE CONTROLLER OF THE NGT9000R

This list is not exhaustive - click here for a full list of compatible equipment.

Air Data

  • B&D 2600 ADC, 2601 ADC, 2800 ADC, 900004-003 ADC
  • Bendix King KAD280/480 ADC (KDC 281,481)
  • Shadin ADC 2000, ADC 200, ADC 200+, 8800T Alt Computer, 9000T Alt Computer, 9200T Alt Computer, 9628XX-X Fuel/ADC
  • Insight TAS 1000 ADC
  • Icarus Instrument 3000
  • Sandia SAC7-35
  • Garmin GDC74A

EFIS

  • Avidyne EXP5000
  • Bendix King EFS40/50
  • Collins Proline 21, EFIS 84 (non-WAAS only)
  • Honeywell Primus 1000
  • Aspen EFD1000 Pilot PFD
  • Garmin G5
  • Garmin GI-275

Satellite Datalink Weather Interface

  • Avidyne MLB700/WSI AV-300 Broadcast Datalink Receiver
  • GDL69/A XM Broadcast Datalink using Baron Wx Services and XM® Satellite Receiver

Electronic Approach Charts & Airport Diagrams

  • CMax™ – ™ Electronic Airway Manual Charts (IFD5XX Only)
  • European VFR (Bottlang) Charts - optional
Charts, Nav Data, and other software updates are easily field loadable via USB port.

Lightning Interface

  • Avidyne TWX670 Tactical Lightning Detection
  • L3 WX-500 Stormscope® Weather Mapping Sensor

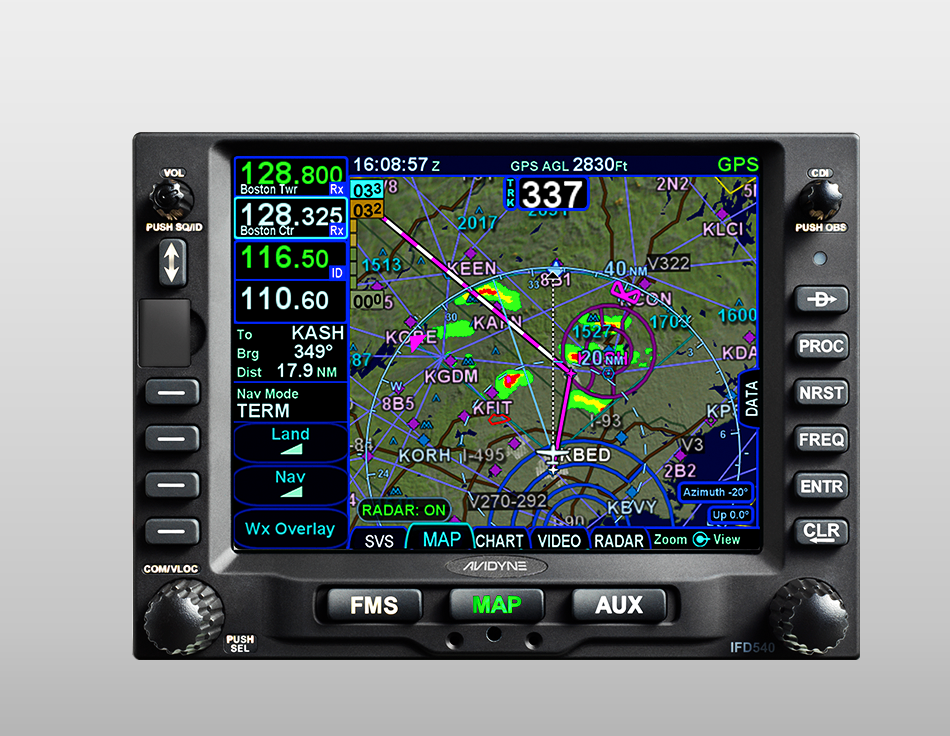

Wx Radar Systems

  • Bendix/King RDR2000
5-Series IFDs provide integrated control and display of your on-board Wx Radar on a dedicated page or overlayed right on the map (optional).

Traffic Interface

  • Avidyne SkyTrax600/605/610/615/620/A TAS/AXP322 TIS
  • Ryan 9900B/BX TAS
  • Honeywell KTA870/KMH880 TAS/IHAS/CAS66A TCAS I
  • L3 Skywatch 497 / HP TAS/ 791 TCAS I
  • Garmin GTS800/820 TAS/GTS850 TCAS I/ GTX330 TIS

ADS-B Interface

  • Avidyne SkyTrax605A/SkyTrax615A/ SkyTrax620A (Traffic)
  • Avidyne SkyTrax100
  • Avidyne AXP340, AXP322
  • L3-NGT 9000
  • FreeFlight RANGR
  • Garmin GTX330ES, GTX335, GTX345

Autopilot

  • Avidyne DFC90
  • Bendix King KFC400, KCP320, KCF325, KFC300, KFC275, KCF225, KCF250, KFC200, KCF150, KAP150, KAP140,KSP100
  • Century I, II, III, IV, 21, 31/41, 2000, Triden, AK 1081 GPSS Converter
  • Collins APC-65 Series, FGC-65, FYD-65
  • STec 20, 30, 40, 50, 55, 55X, 60 PSS, 60-1, 60-2, 65, ST901 GPSS Converter

Audio Panel

  • Avidyne AMX240
  • Apollo (Garmin) SL10, SL15
  • Garmin GMA 340, GMA 347
  • PS Engineering 6000, 7000, 8000/8000BT
  • Bendix King KMA24, KMA 26, KMA 28, KMA24H

Terrain Awareness

  • Color-Contoured Terrain Base Map Built in
  • Americas Terrain & US Obstacle Data
  • International Terrain Data (optional)

Video Interface

  • RS170 (optional)
IFD540 and IFD550 features an optional RS170 video input, capable of displaying video from aircraft-mounted IR/EVS or other compatible sources.

406 ELT Interface

  • Aviation RS-232
  • NMEA 0183

Applicable TSOs

  • TSO-C34e, TSO-C36e, TSO-C40c, TSO-C44c, TSO-C110a, TSO-C112e, TSO-C113a, TSO-C118, TSO-C128a, TSO-C146d, TSO-C147, TSO-C157a, TSO-C165, TSO-C169a

AVIDYNE PRODUCT BROCHURE

Download PDF
Date: 08/27/2019
Part Number: AV848
File Size: 16.3 MB
File Revision: Rev. 02

IFD540 Quick Reference Guide

Download PDF
Date: 08/25/2020
Part Number:
File Size: 11.3mb
File Revision:

Service Letter

Download PDF
Date: 09/15/2021
Part Number: 606-00182-032
File Size: 231.98 KB
File Revision:

Service Letter

Download PDF
Date: 03/05/2021
Part Number:
File Size: 145.77 KB
File Revision:

IFD540 Datasheet

Download PDF
File Size: 497.07 KB
