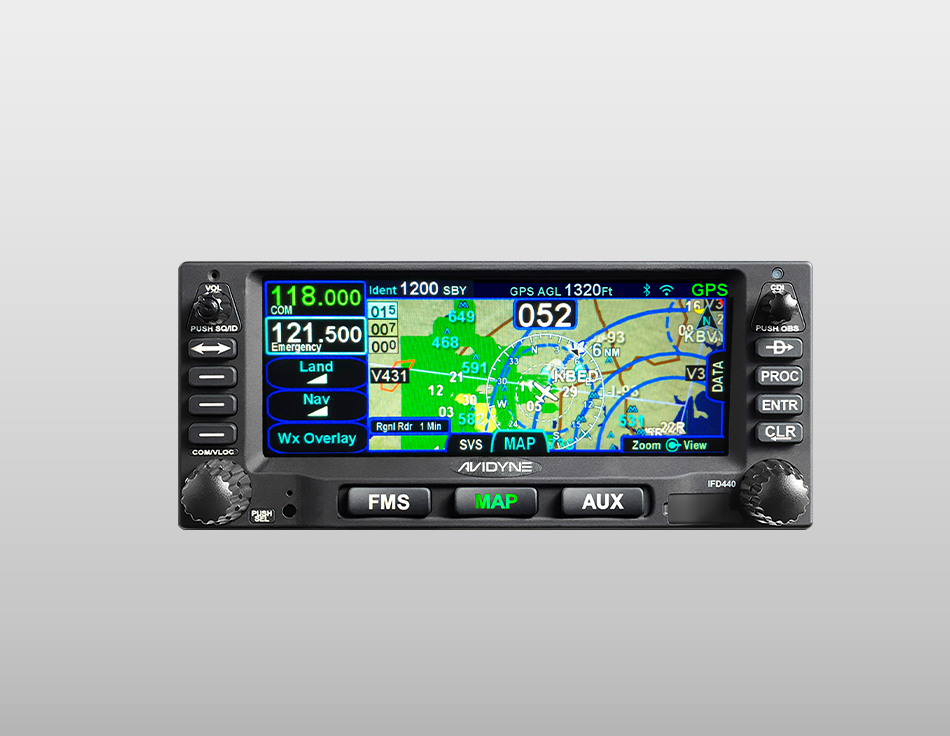

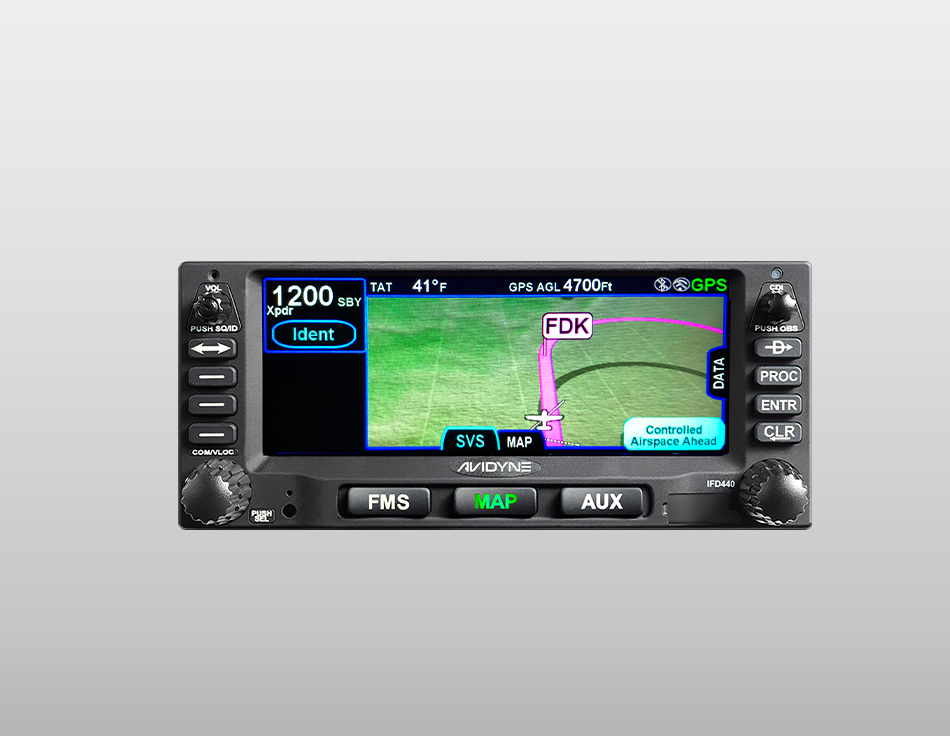

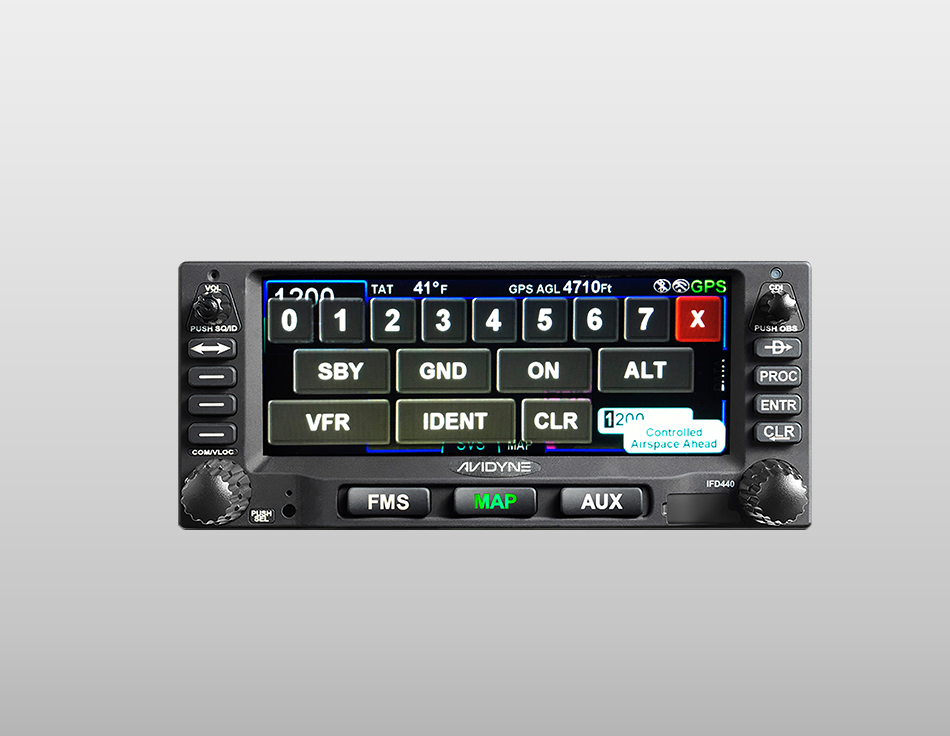

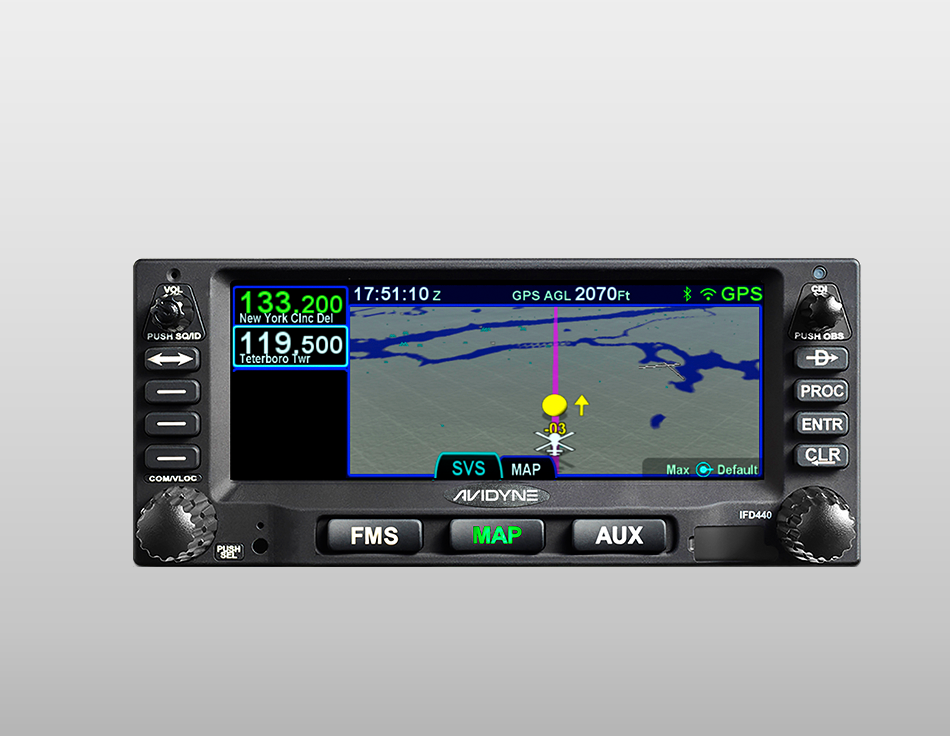

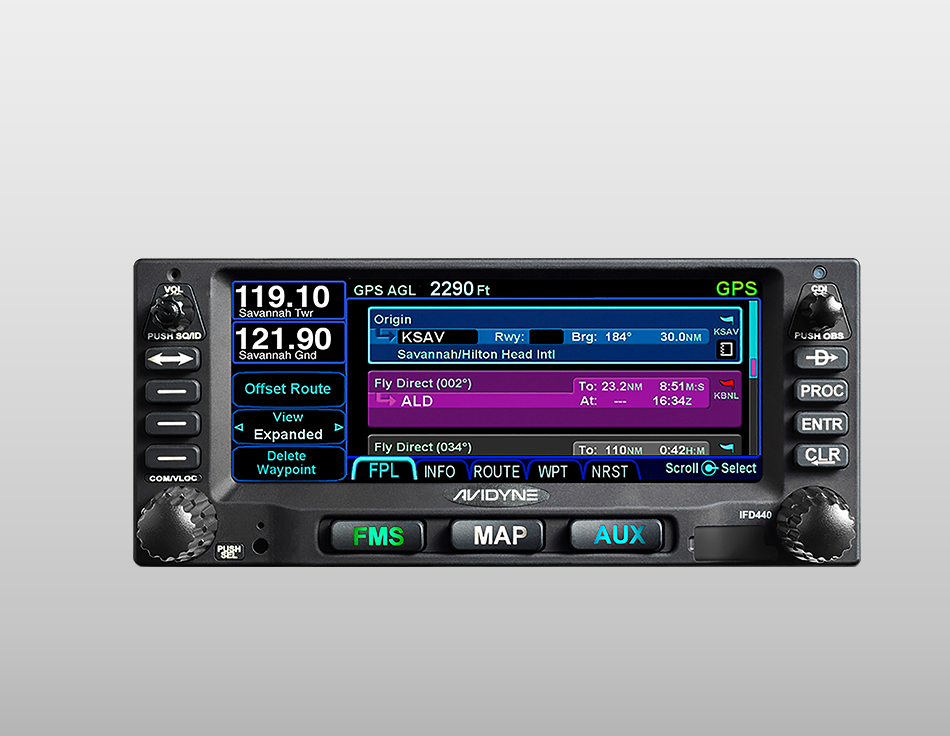

Garmin GNS430 Slide in Replacement: IFD440

Display (IFD440/410)

• 4.8” Diagonal w/Touch Screen
• Full VGA - 640 x 480 pixels
• 65,535 colors
• Ultrabright sunlight readable w/LED Backlighting

Dimensions (IFD440/410)

• Width: 6.30” (16.0cm)
• Height: 2.66“ (11.7cm)
• Depth: 11.00“(27.5cm) behind panel including connector

Weight (including tray and connectors)

• IFD440 - 6.88 lb (2.34 kg)
• IFD410 - 5.16 lb (3.99 kg)
• IFD550 - 9.19 lb (4.17 kg)
• IFD540 - 8.79 lb (3.99 kg)
• IFD545 - 7.48 lb (3.39 kg)
• IFD510 - 7.13 lb (3.23 kg)

Power Requirements

• 11 – 33VDC
• 4.4A/6.5A Xmit @ 14vdc
• 2.2A/4.0A Xmit @ 28vdc

VHF COM Power Output

• 10 Watts nominal
• Optional 16Watt (for 28vdc installations only)

Environmental

• DO 160E
• To 50,000 Ft
• -20C to +55C Operating
• +70C Short Term

Applicable TSOs

• TSO-C34e - ILS Glide Slope Receiving Equipment Operating within the Radio Frequency Range of 328.6-335.4 Megahertz (MHz)
• TSO-C36e - Airborne ILS Localizer Receiving Equipment Operating within the Radio Frequency Range of 108-112 Megahertz (MHz)
• TSO-C40c - VOR Receiving Equipment Operating within the Radio Frequency Range of 108-117.95 Megahertz (MHz)
• TSO-C44c - Fuel Flowmeters
• TSO-C110a - Airborne Passive Thunderstorm Detection Equipment
• TSO-C112e - Air Traffic Control Radar Beacon System/Mode Select (ATCRBS/Mode S) Airborne Equipment
• TSO-C113a - Airborne Multipurpose Electronic Display
• TSO-C118 - Traffic Alert and Collision Avoidance System (TCAS) Airborne Equipment, TCAS I
• TSO-C128a - Devices that Prevent Blocked Channels Used in Two-Way Radio Communications Due to Unintentional Transmissions
• TSO-C146d - Stand-Alone Airborne Navigation Equipment Using the Global Positioning System (GPS) Augmented by the Wide Area Augmentation System (WAAS).Airborne Supplemental Navigation Equipment Using the Global Positioning System (GPS) - Gamma 3
• TSO-C147 - Traffic Advisory System (TAS) Airborne Equipment - Class A (Display Functions Only)
• TSO-C157a - Aircraft Flight Information Services – Broadcast (FIS-B) Datalink Systems and Equipment
• TSO-C165 - Electronic Map Display Equipment for Graphical Depiction of Aircraft Position
• TSO-C169a - VHF Radio Communications Transceiver Equipment Operating Within The Radio Frequency Range 117.975 To 137.000 Megahertz - Class C, E, 3 and 5

UNCOMMANDED RESTART IFD4XX IFD5XX

INCORRECT SQUAWK CODE WHEN IFD4XX/5XX IS THE CONTROLLER OF THE NGT9000R

This list is not exhaustive - click here for a full list of compatible equipment.

Satellite Datalink Weather Interface

• Avidyne MLB700/WSI AV-300 Broadcast Datalink Receiver
• GDL69/A XM Broadcast Datalink using Baron Wx Services and XM® Satellite Receiver

Electronic Approach Charts & Airport Diagrams (IFD5XX Only)

• CMax™ – Jeppesen Electronic Airway Manual Charts (IFD540 only)
• European VFR (Bottlang) Charts - optional

Lightning Interface

• Avidyne TWX670 Tactical Lightning Detection
• L3 WX-500 Stormscope® Weather Mapping Sensor

Wx Radar Systems

• Bendix/King RDR2000

Traffic Interface

• Avidyne SkyTrax600/605/610/615/620/A TAS/AXP322 TIS
• Ryan 9900B/BX TAS
• Honeywell KTA870/KMH880 TAS/IHAS/CAS66A TCAS I
• L3 Skywatch 497 / HP TAS/ 791 TCAS I
• Garmin GTS800/820 TAS/GTS850 TCAS I/ GTX330 TIS

ADS-B Interface

• Avidyne SkyTrax605A/SkyTrax615A/ SkyTrax620A (Traffic)
• Avidyne SkyTrax100B
• Avidyne AXP340, AXP322
• L3 NGT-9000
• FreeFlight RANGR
• Garmin GTX330ES, GTX335, GTX345

Terrain Awareness

• Color-Contoured Terrain Base Map Built in
• Americas Terrain & US Obstacle Data
• International Terrain Data (optional)

406 ELT Interface

• Aviation RS-232
• NMEA 0183

Applicable TSOs

• TSO-C34e, TSO-C36e, TSO-C40c, TSO-C44c, TSO-C110a, TSO-C112e, TSO-C113a, TSO-C118, TSO-C128a, TSO-C146d, TSO-C147, TSO-C157a, TSO-C165, TSO-C169a

EFIS

• Garmin G5
• Garmin GI-275
